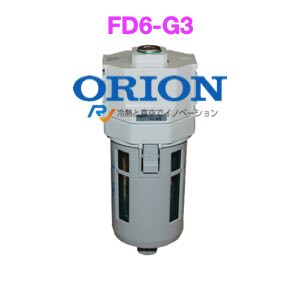

Auto Drain Trap ORION FD6-G3 (FD6-G1/FD6-G2)
- Model: FD6-G3 (FD6-G1/FD6-G2)
- Brand: ORION
- Price: Please contact for Quotation
| Model |
| |
| Maximum drain flow capacity | 30 cm³/ cycle | |
| Working pressure | Mpa | 0.1 - 1.0 |
| Working temperature | DegC | 2-60 |
| Fluid | Compressed Air | |
| Drain Method | Float Type | |
| Connections | Inlet | Rc1/2 |
| Drain outlet | ID Ø5.7 -6.0 OD Ø8 | |
| Weight | kg | 0.45 |
| Outside dimensions (H x D x W) | mm | 201×80×80 |
What is the difference between "FD6-G1", "FD6-G2" and "FD6-G3"?
"FD6-G1" and "FD6-G2" are the model numbers of the drain traps attached to the product (Air Dryer or Air Filter), and the difference is whether the top (-G1) or side (-G2) side is plugged. "FD6-G3" can be installed on either the side or the top. "FD6-G3" comes with a plug. Install the plug on the side you don't want.
